32 CDV 13 Nitriding Steel32 CDV 13

Low Alloy Nitriding Steel

32 CDV 13 in the French AIR 9160 aeronautical specifications is a 3% Cr-Mo-V nitriding steel offering a tensile strength of up to over 1,300 MPa and which develops a hard (around 850 HV), wear resistant surface after nitriding treatment.

The alloy is usually produced by single electric melting and vacuum degassing but is also available as a vacuum arc re-melted (VAR) version designated with the prefix (E). Material is ultrasonically tested. The alloy can be employed for high strength non-nitrided parts or for nitrided components where high mechanical properties are required in the core. Bars are usually supplied in the annealed condition.

Heat Treatment:

Final heat treatment consists of hardening at 950°C (oil quench) followed by tempering at a temperature appropriate to the balance of strength and ductility required (refer to published standard and table below).

Technical Assistance

Our knowledgeable staff and resident metallurgists will be pleased to assist you further on any technical topic. Smiths Metal Centres Limited also boasts an in-house UKAS Accredited Testing Laboratory which is unique within the multi-metal and plastic stockholding sector. We believe this underlines our total commitment to quality and our ethos of being the complete service provider.



Download 32 CDV 13 Nitriding Steel Datasheet

Typical Applications:

  • High strength mechanical engineering parts
  • Aerospace Industry
  • Motorsport
  • General mechanical engineering

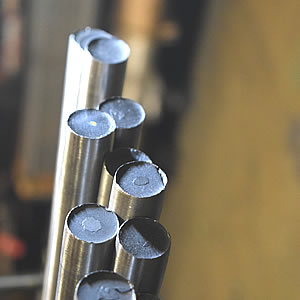

We offer 32 CDV 13 Nitriding Steel in round bar. We provide processing services throughout the Smiths Group - with more than 30 band saws and a fully automated magazine feed CNC rod blanking line, we can process your material to your exact requirements.
